Electric UAV Powertrain
Electric UAV Powertrain
T Power Air UAV Powertrain Meets High Payload and eVTOL Requirements
TECO focuses on agricultural, commercial, and logistics drones. The newly developed medium-size UAV powertrain features hairpin motors and incorporates five patented technologies: in-slot air cooling, 20g axial shock resistance, three-proof coating, high-grade salt spray protection, and high-temperature aluminous housing for anti-bearing slip , supporting a MTOW of 150 kg.
The mass-produced OD128 medium-size UAV powertrain uses an outer-rotor hairpin winding with Halbach magnet arrangement, achieving a torque density of 25 Nm/kg and peak power over 13 kW. Each motor can lift more than 75 kg, now the integrated into drone supply chain.
Product
T Power Air OD128 UAV Powertrain
T Power Air OD128 UAV Powertrain
Application

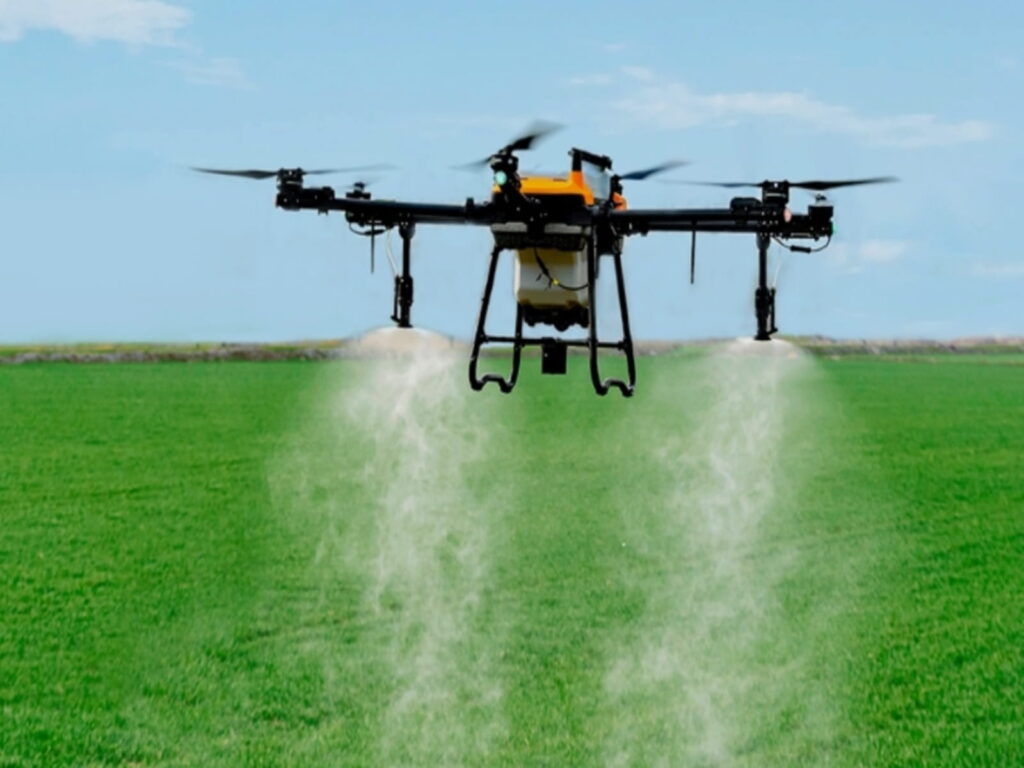

Agricultural UAV
Agricultural UAV
